Specifications
Analyzing your problem within 24 hrs, help solve the problem, restore battery usage, andintroduce the best use method; lf the problem cannot be resolved, Sending a new battery to replace the defective one .

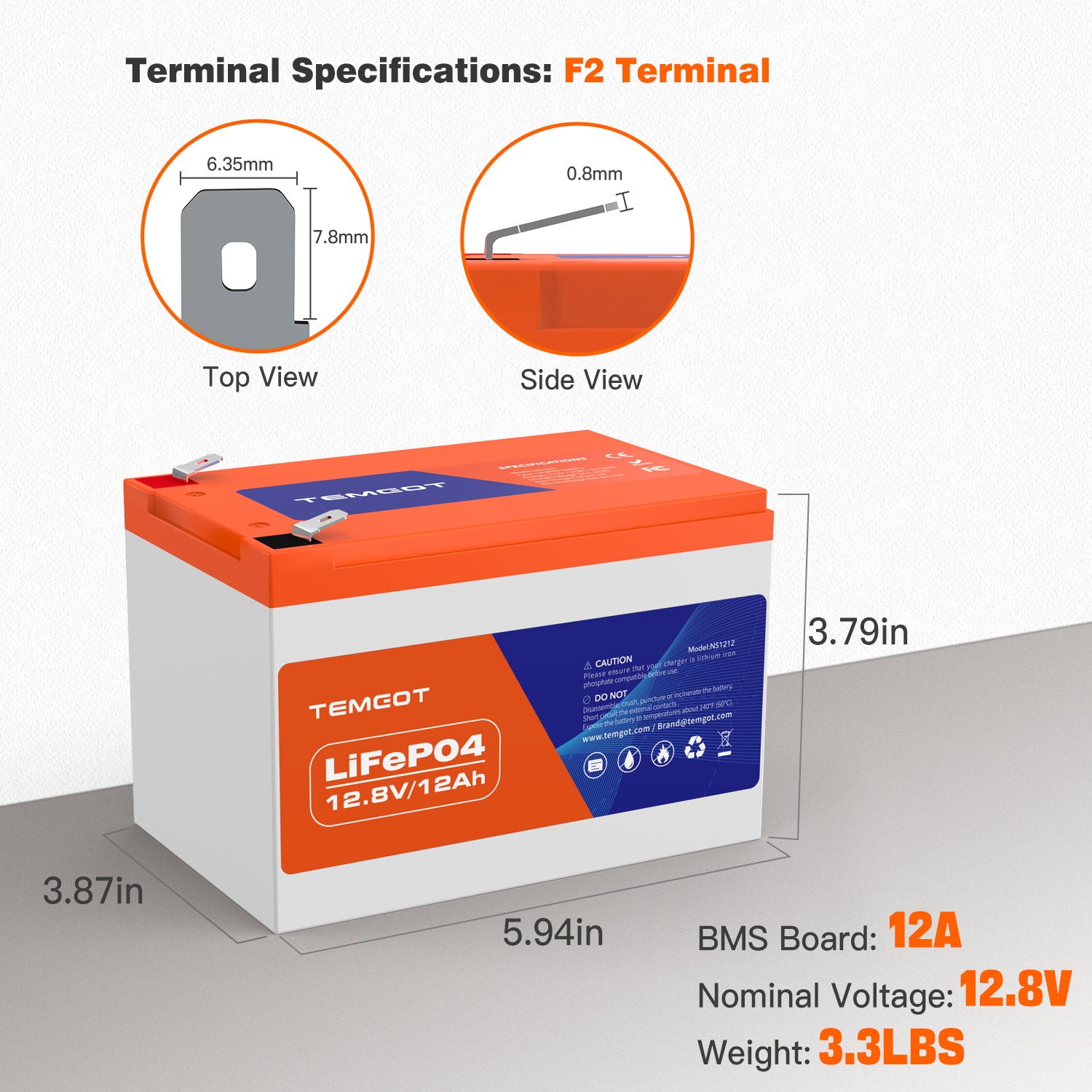

5.94"x 3.87"x 3.79" (151x98.4x96.5mm).
3.3 lbs (1.5 Kg). That's 60% lighter than a traditional lead-acid.
Use 14.6V lithium battery charger to maximize the capacity.

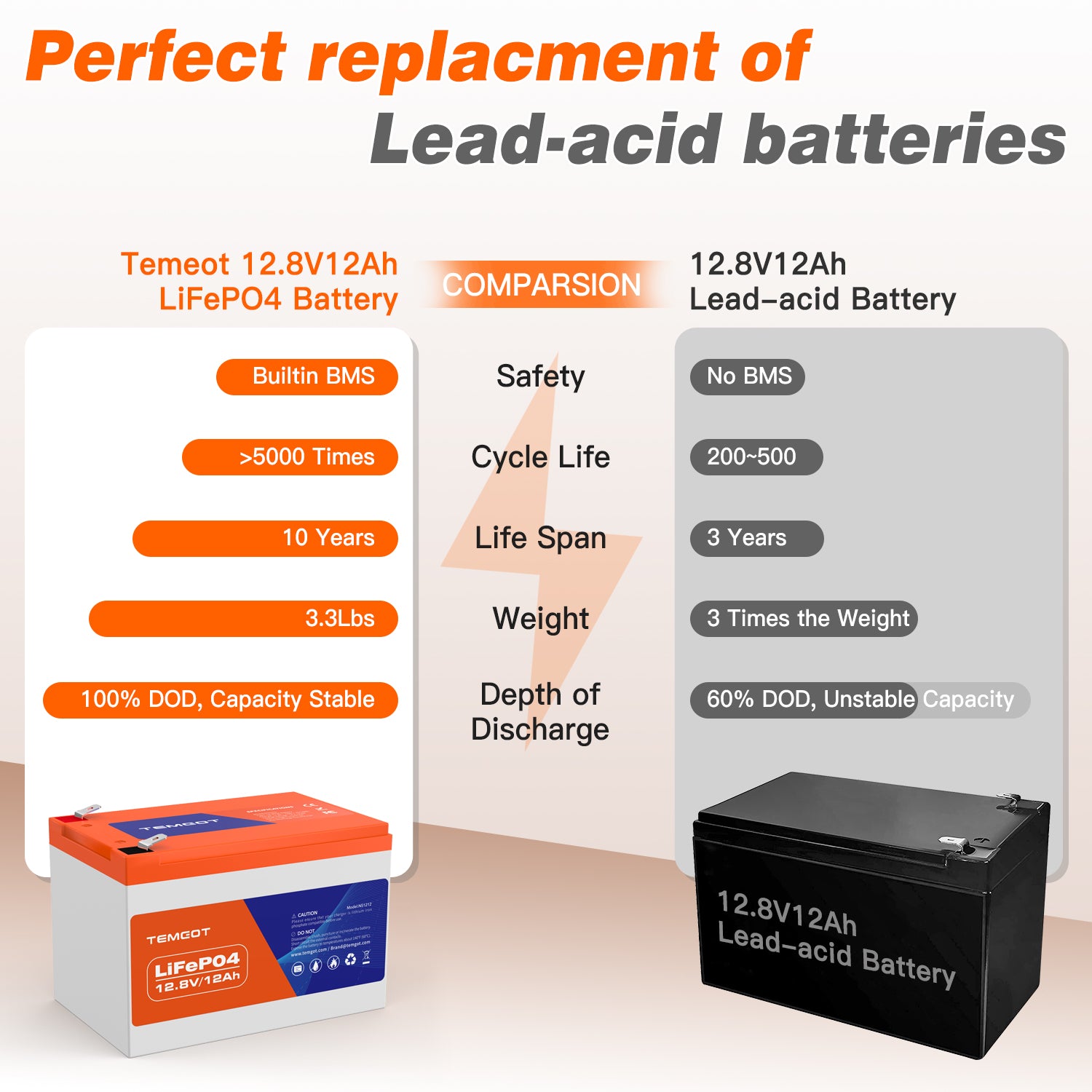

Up to 5000 cycles compared to 300~500 cycles in lead acid battery.
Ideal for rugged & harsh environments. Much better than lead acid lithium’s. -4°F min, +140°F max discharging temps (battery performs well down to -4°F). Avoid charging below 32°F.
Standard F2 terminals.
Battery voltage stays above 12.5V at 90% discharged.
Recommend Charging Voltage: Between 14.2V to 14.6V.

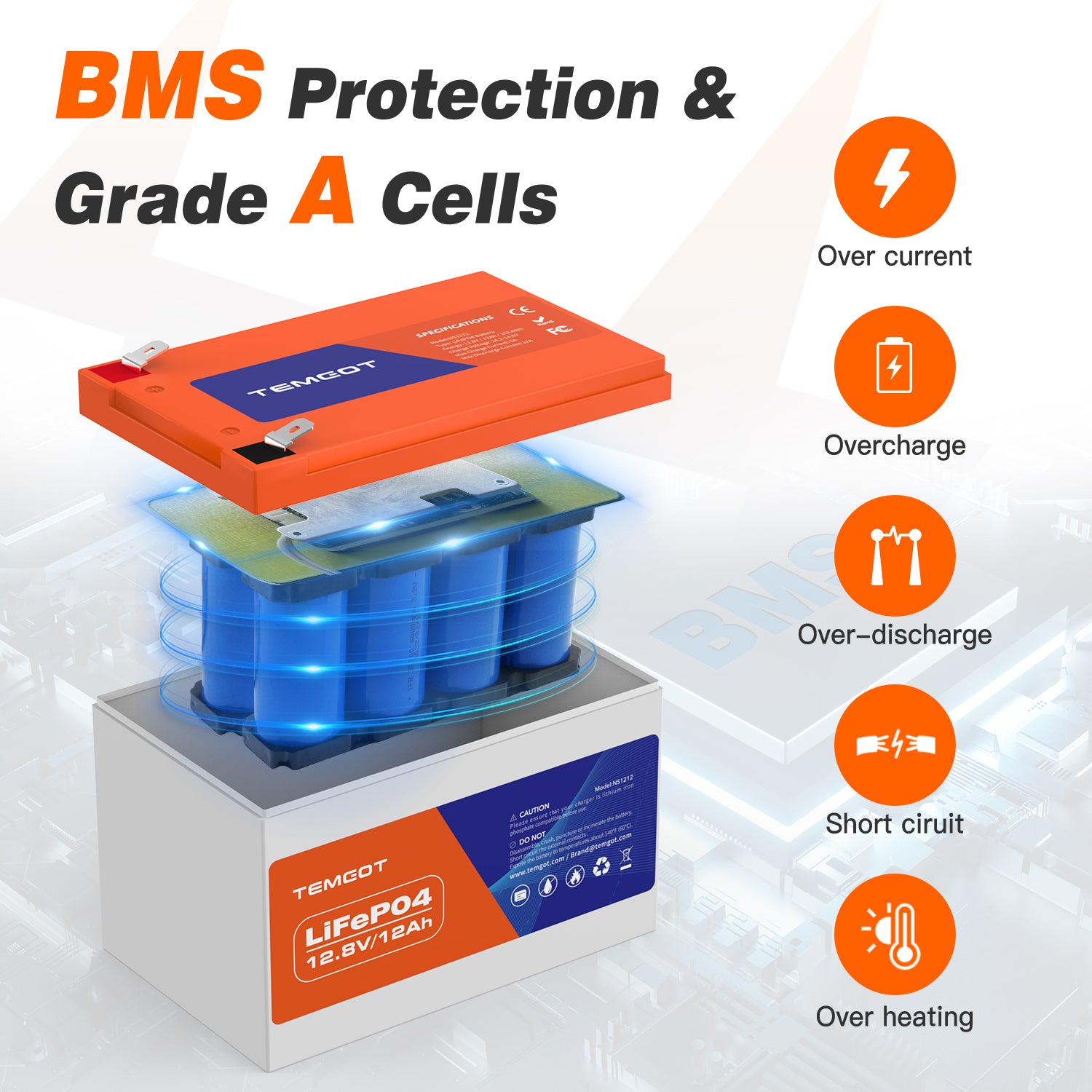

Protecting it from overcharge, deep discharge, overload, overheating and short circuit, and low self-dis-charge rate.
Use 14.6V lithium battery charger.
1、The same battery capacity (Ah); 2、From same brand (as lithium battery from different brands hastheir special BMS); 3、Purchased in near time (within one month).

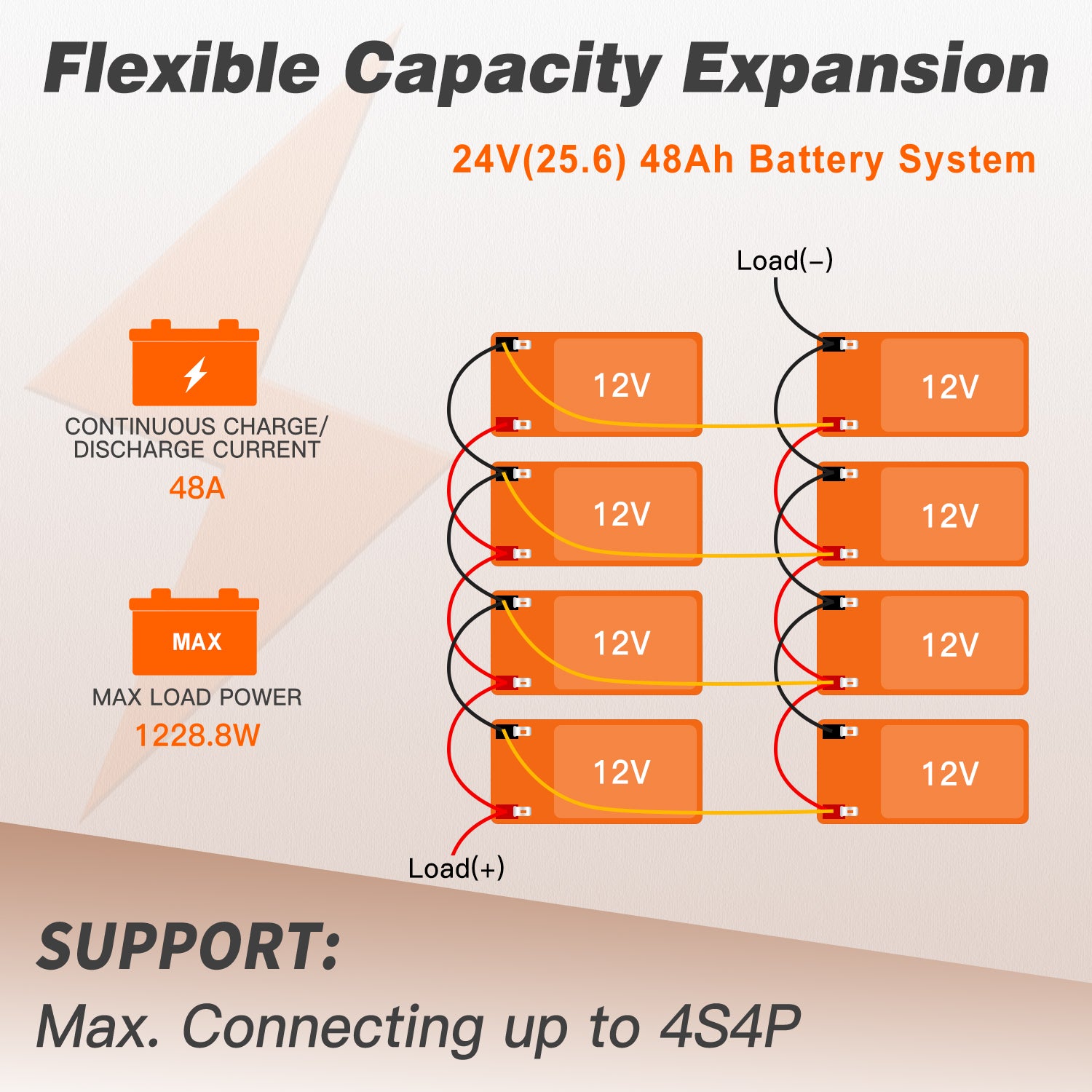

We suggest that the Max connectionin series is: 4 pcs batteries to 48V, the Max connection in parallels is: itcan connect multiple batteries, and no more than 10 pcs in parallel.Products of different manufacturers cannot be connected in series orin parallel. When the batteries are used in parallel or series, the voltagemust be the same.

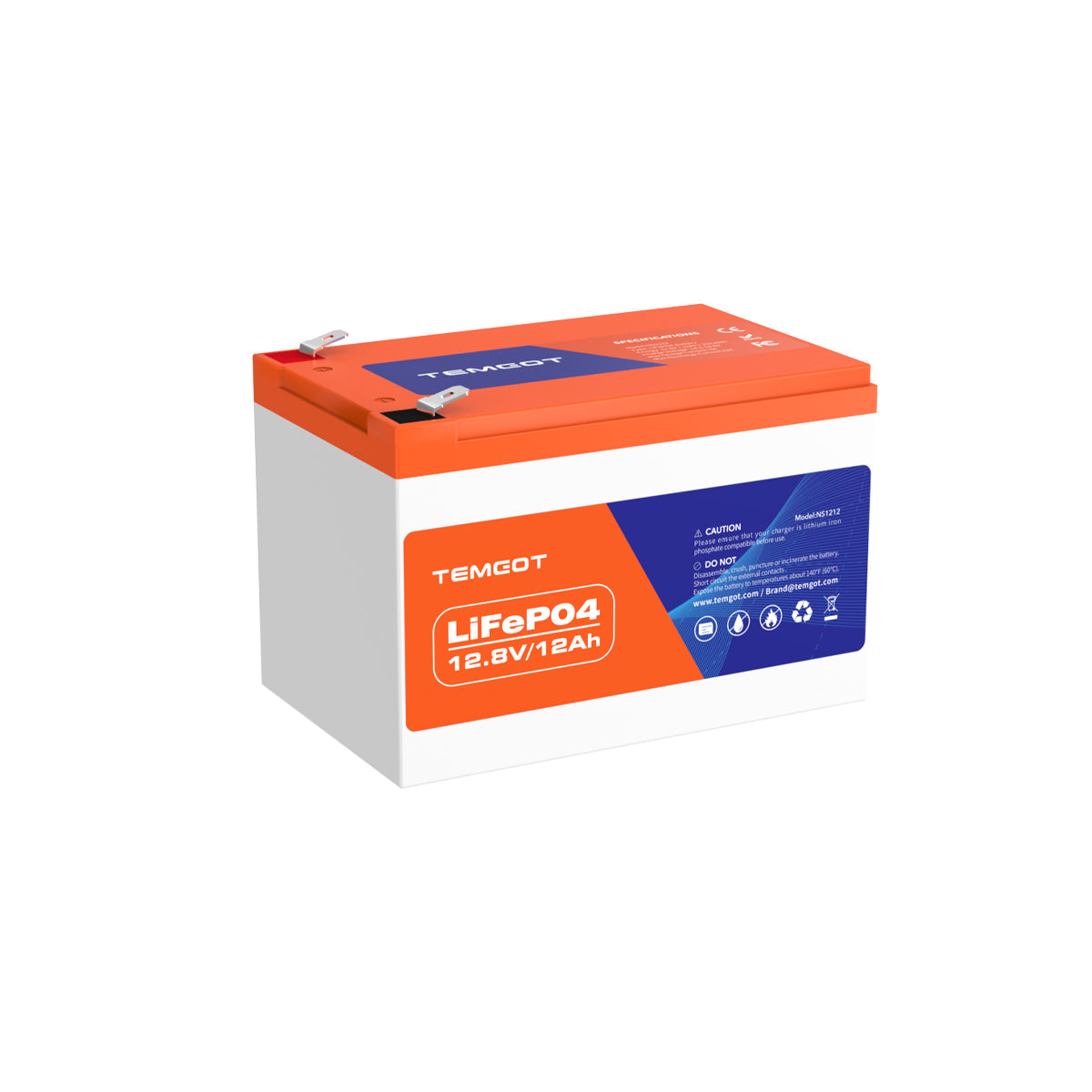

1*12.8V 12AH Lithium Battery
PRECAUTIONS:
- ✓. When recharging, use the LiFeP04 battery charger specifically forthat purpose.
- ✓. Do not strike battery with any sharp edge parts, such as Ni-tabs, pinsand needles.
- ✓. Do not immerse the battery in water and seawater.
- ✓. Do not use and leave the battery near a heat source as fire or heater.Do not reverse the position and negative terminals.
- ✓. Do not discard the battery in fire or heat it, Do not bend tab.
- ✓. The battery tabs are not so stubborn especially for aluminum tab.Do not short-circuit the battery by directly connecting the positiveand negative terminal with metal object.
- ✓. Do not transport and store the battery together with metal objectssuch as necklaces, hairpins etc.
- ✓. Do not directly solder the battery and pierce the battery with a nailor other sharp object.
